🔢 Item Data

Introduction

Item Data refers to the NBT (Named Binary Tag) of an item in older versions, or the item Components in version 1.20.5 and above. Through this data, we can customize various aspects of an item such as its name, description, attributes, and other functionalities provided by vanilla Minecraft.

Compatibility with Other Plugins

If you want a CraftEngine item to retain the data of an external plugin's item, follow this configuration:

items:
  default:example_item:
    data:
      external:
        plugin: neigeitems
        id: example_item

info

Support plugins can be found on this page.

For plugins that use ResourceLocation for items, just use namespace:path as id. For example:

id: test_namespace:test/my_path

For plugins like MMOItems that include types, you need to use a colon : to separate the type from the ID. For example:

id: MATERIAL:IRON_INGOT

Hard-coded Data

tip

Hardcoded data, in this context, means that the configuration formats are provided and maintained by plugin, which ensures compatibility across different versions. These formats are defined by the plugin, so they may differ from the standard NBT (Named Binary Tag) or Components formats used by the game itself. The advantage of this approach is that the plugin handles all the maintenance, including version compatibility, so you do not need to worry about changes or updates between game versions.

item-name

Determines the default name of this item, unlike the custom-name, this name can't be erased using an anvil, won't be italicized, and does not show in some labels, such as banner markers and item frames.

items:
  default:topaz_rod:
    data:
      item-name: "<!i><#FF8C00>Topaz Rod" # we use <!i> here because 1.20.4 and below
                                          # don't have item_name component

custom-name

Used to specify the item's custom name, like you can in an anvil.

items:
  default:topaz_rod:
    data:
      custom-name: "<!i><#FF8C00>Topaz Rod"

lore

Determines the displayed description of the item.

items:
  default:topaz_rod:
    data:
      lore:
        - "What a shiny rod!"

unbreakable

Determines whether the item is unbreakable.

items:
  default:topaz_rod:
    data:
      unbreakable: true

enchantment

Determines the enchantments of the item.

items:
  default:topaz_rod:
    data:
      enchantment:
        minecraft:sharpness: 1
        custom:enchant: 3

tip

When the item type is an enchanted book, any enchantments will automatically be converted to stored enchantments.

dyed-color

Determines the color of the item

items:
  default:sofa:
    data:
      dyed-color: 255,255,255

custom-model-data

items:
  default:sofa:
    data:
      custom-model-data: 100

caution

To ensure backward compatibility, custom-model-data in this context only supports integer values. If you want to use newer version features, you should use components instead.

hide-tooltip

Hides any tooltips provided by the specified components on this item. This works for all versions as plugin handles the cross version compatibility. Formerly known as HideFlags.

items:
  default:sofa:
    data:
      hide-tooltip:
        - dyed_color
        - enchantments
        - attribute_modifiers

attribute-modifiers

Applies attribute modifiers onto items.

items:
  default:sofa:
    data:
      attribute-modifiers:
        - type: attack_speed
          amount: 1.0
          operation: add_value # add_value, add_multiplied_base, add_multiplied_total
          id: namespace:custom_attribute # Optional
          slot: any # any, hand, armor, mainhand, offhand, head, chest, legs, feet or body
          display: # 1.21.5
            type: override
            value: <yellow>Attack Speed +1

tip

You can safely use the latest attribute names on legacy versions as plugin will help you convert them. Lastest attribute names can be found on https://minecraft.wiki/w/Attribute

food (1.20.5+)

items:
  default:magic_apple:
    material: apple
    data:
      food:
        nutrition: 5
        saturation: 3.5
        can-always-eat: false

tip

For setting food-related properties in older Minecraft versions, please refer to food.

jukebox-playable (1.21+)

One jukebox song to play when inserted into a jukebox.

items:
  default:music_stick:
    material: stick
    data:
      jukebox-playable: default:credits_music

item-model (1.21.2+)

Defines the item model of this item.

items:
  default:music_stick:
    data:
      item-model: default:music_stick

tooltip-style (1.21.2+)

Determines the tooltip style of the item.

items:
  default:topaz_rod:
    data:
      tooltip-style: minecraft:topaz #namespace:tooltip_style_id

tip

To create a tooltip style, you must place the texture in the directory as follows: https://minecraft.wiki/w/Data_component_format/tooltip_style

trim

Apply a decorative alteration to a tool or armor

trim:
  pattern: eye # https://minecraft.wiki/w/Smithing#Trimming
  material: iron # https://minecraft.wiki/w/Smithing#Material

equippable (1.21.2+)

If present, this item can be equipped in the specified slot.

equippable:
  # The slot to put the item on
  slot: head # HEAD / CHEST / LEGS / FEET / BODY / MAIN_HAND / OFF_HAND / SADDLE

  # Optional Arguments
  # The directory this refers to is assets/<namespace>/equipment/<id>.json
  asset-id: minecraft:topaz
  # The resource location of the overlay texture to use when equipped. The directory this refers to is assets/<namespace>/textures/<id>.
  camera-overlay: namespace:id
  # Whether the item can be dispensed by using a dispenser.
  dispensable: true
  # Whether this item is damaged when the wearing entity is damaged.
  damage-on-hurt: true
  # Whether the item can be equipped into the relevant slot by right-clicking.
  swappable: true
  # >= 1.21.5
  # Whether this item can be equipped onto a target mob by pressing use on it (as long as this item can be equipped on the target at all)
  equip-on-interact: true

Customizable Data

caution

Customizable Data is not maintained by plugins, and its format can change with updates to Minecraft, particularly with the frequent recent changes to Components.

NBT (1.20-1.20.4)

warning

Since NBT (Named Binary Tag) has become outdated, it will not be discussed in detail here. https://minecraft.wiki/w/Item_format/Before_1.20.5

items:
  default:topaz_rod:
    data:
      nbt:
        CustomModelData: 1000

Components (1.20.5+)

The format for custom Components strictly adheres to the Minecraft Wiki guidelines. Below, I will guide you through a few examples to help you become familiar with how to configure custom components. The examples here are arranged in order of increasing difficulty, from simple to advanced. We recommend studying them one by one to ensure a smooth learning curve.

max_damage [★]

From the image, we can see that max_damage accepts an I (which stands for an integer type parameter). Therefore, in our configuration, we simply need to use a numerical value directly.

items:
  guide:test:
    data:
      components:
        minecraft:max_damage: 128

food [★★]

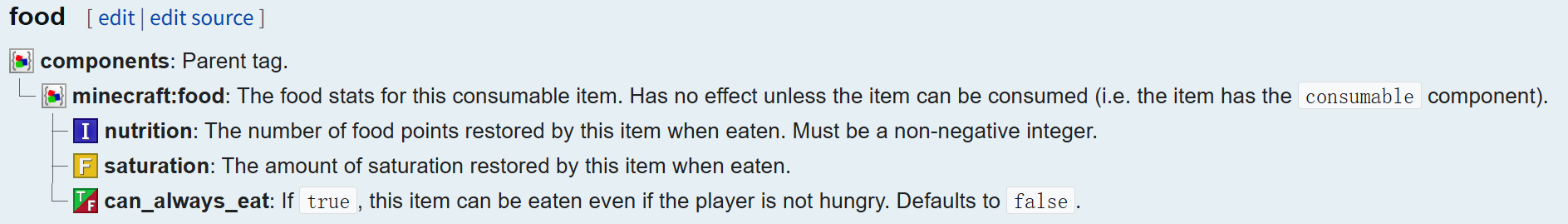

From the image, we can see that food requires three parameters: nutrition of type int, saturation of type float, and can_always_eat of type boolean.

items:
  guide:test:
    data:
      components:
        minecraft:food:
          nutrition: 4
          saturation: 2.0
          can_always_eat: false

block_state [★★]

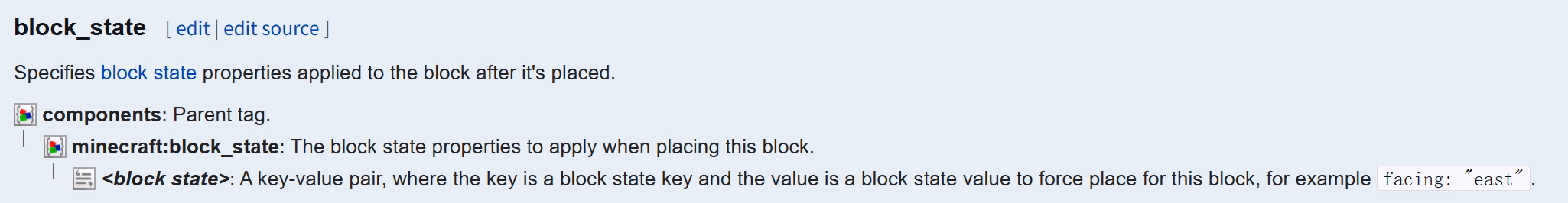

According to the description here, we need to provide key-value pairs where the value must be a string type.

items:
  default:palm_leaves:
    data:
      components:
        minecraft:block_state:
          distance: '1'
          persistent: 'false'
          waterlogged: 'false'

instrument [★★★]

When an option supports multiple data types, you can simply choose the appropriate type based on your specific needs.

items:
  guide:horn:
    material: goat_horn
    data:
      components:
        minecraft:instrument: "seek_goat_horn"

items:
  guide:horn:
    material: goat_horn
    data:
      components:
        minecraft:instrument:
          description:
            text: "Custom Instrument"
            color: "red"
          sound_event: minecraft:block.note_block.bell
          use_duration: 1
          range: 16

fireworks [★★★★]

items:
  guide:firework:
    material: firework_rocket
    data:
      components:
        minecraft:fireworks:
          flight_duration: 3
          explosions:
            - shape: small_ball
              colors: [11223344]
              fade_colors: [0]
              has_trail: true
              has_twinkle: true

Remove Components (1.20.5+)

Removes the component from the item.

items:
  test:item:
    data:
      remove-components:
        - minecraft:equippable

Client Bound Data

The client-bound-data exists exclusively on the client side, with no server-side components involved. Using the client-side item component, you can effortlessly update item descriptions in real time—including properties like item_model and custom_model_data. Additionally, unlike other plugins, CraftEngine items remain permanently unaltered in creative mode!

caution

If you have enabled enable-item-obfuscation in paper-global.yml, you need to add minecraft:custom_data to the dont-obfuscate section, otherwise items will not display correctly when viewing other entities.

info

Simply add a client-bound-data section in your configuration area, then move (cut/paste) the required data from the original data section into it

items:
  default:topaz_rod:
    client-bound-data:
      item-name: "<!i><#FF8C00>I'm not Topaz Rod"
    data:
      item-name: "<!i><#FF8C00>Topaz Rod"

tip

client-bound-data is quite useful for players in adventure mode, allowing them to break certain real custom blocks on serverside.

items:
  default:topaz_pickaxe:
    material: golden_pickaxe
    custom-model-data: 1000
    settings:
      tags:
        - "default:topaz_tools"
    client-bound-data:
      components:
        # client side block state
        can_break:
          blocks: minecraft:note_block
          state:
            "instrument": "hat"
            "note": "0"
            "powered": "false"
    data:
      item-name: "<!i><#FF8C00><i18n:item.topaz_pickaxe>"
      tooltip-style: minecraft:topaz
      components:
        minecraft:max_damage: 64
        # server side block state
        can_break:
          blocks: "craftengine:note_block_1"
    model:
      template: default:model/simplified_handheld
      arguments:
        path: "minecraft:item/custom/topaz_pickaxe"
